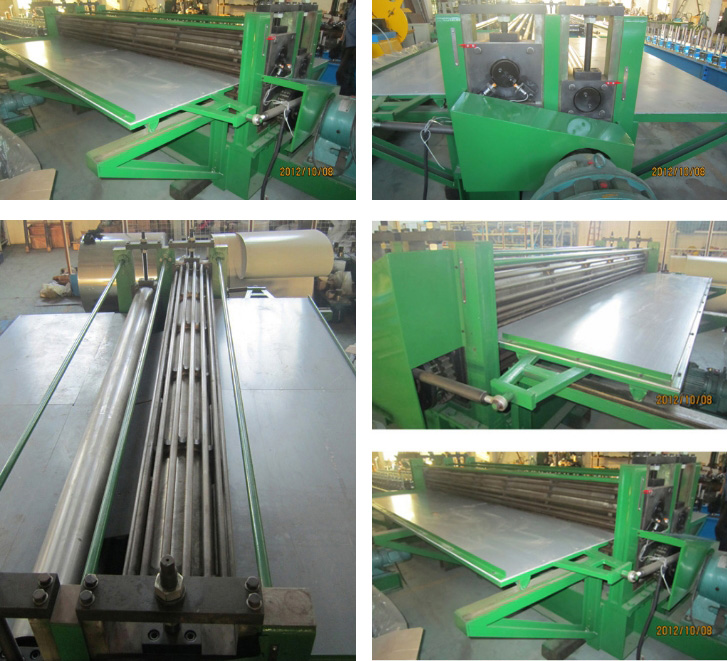

Barrel Type Corrugation Machie

Descrition:

No 1: The barrel type corrugation machine is only used to roll thin sheet from 0.15mm to 0.4mm and max length can be 14 feet( 4267mm)
No 2:The material width can be 762mm(2.5feet),914mm(3 feet),1000mm and 1250mm
No 3:The material can be pre-painted steel,galvanized steel,galvalume and pre-painted galvanlume etc ,(G350Mpa to G550Mpa)
No 4:Finished product width:665mm for 762mm input
800mm for 914mm input
875mm for 1000mm input
Pitch width:76.2mm(+/-2mm)
Depth:18mm(+/-1.5mm)
No 5:The uppper and bottom rolls for corrugation can be adjustable

No 6: We exported to this type machine to some South Eastern countries like Indonesia,Sri Lanka,Philippines ect

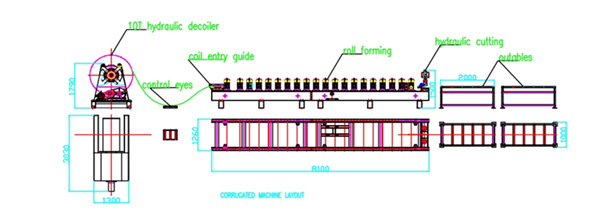

Flow Chart:

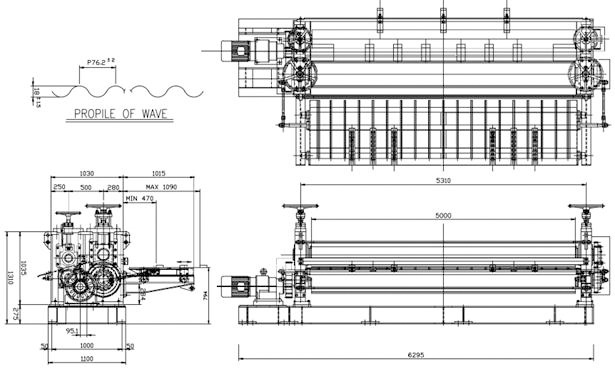

Profile drawing:

Specifications:

1	Material thickness	mm	0.15-0.4mm Full hard,G350Mpa--G350Mpa
2	Forming speed	R/min	12
3	Roll station		2 sets
4	Main power	kw	11kw AC motor
5	Coil width input		762mm,914mm,,1000mm.1250mm
6	Control system	/	PLC panasonic/omron/simens/mitsubishi
7	Power supply		380v,50Hz,3ph
8	Drive	/	Chain drive
