Bemo Panel forming Machine

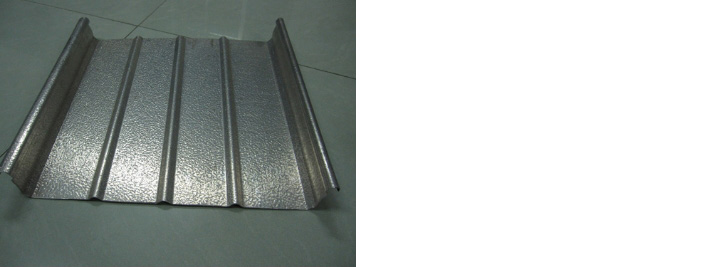

Profile show

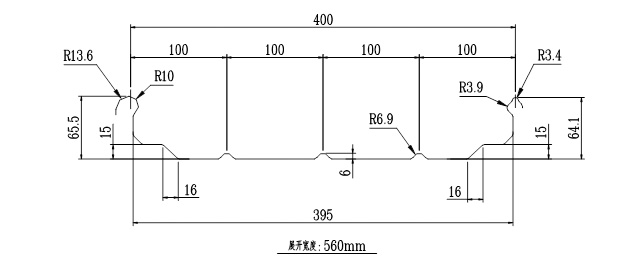

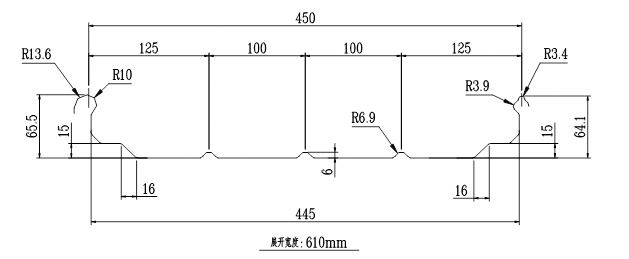

Profile drawing:
Specification:
|
1 |
Material thickness |
mm |
0.3-1.0mm |
|
2 |
Forming speed |
m/min |
12-16 |
|
3 |
Roll station |
/ |
16 |
|
4 |
Main power |
kw |
4 |
|
6 |
Hydraulic power |
kw |
4 |
|
7 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
8 |
Drive |
/ |
Chain drive |
|
9 |
Decoiler |
5T |
Manual type and hydraulic decoiler and coil car as options |
|
10 |
Safety cover |
|
Yellow color |

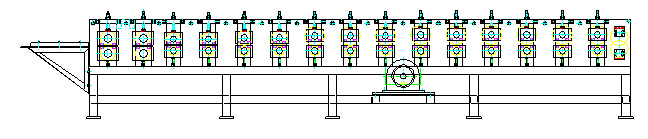

Side view:
Specification:
|
1 |
Material thickness |
mm |
0.3-1.0mm |
|
2 |
Forming speed |
m/min |
12-16 |
|
3 |
Roll station |
/ |
16 |
|
4 |
Main power |
kw |
4 |
|
6 |
Hydraulic power |
kw |
4 |
|
7 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
8 |
Drive |
/ |
Chain drive |
|
9 |
Decoiler |
5T |
Manual type and hydraulic decoiler and coil car as options |
|
10 |
Safety cover |
|
Yellow color |
Side view:

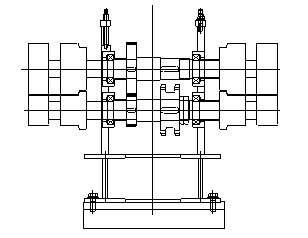

front view:

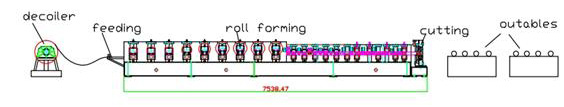

Flow chart:
Manual feeding---single side forming—adjustment---another side forming—outable
