AG Panel Roll Forming Machine

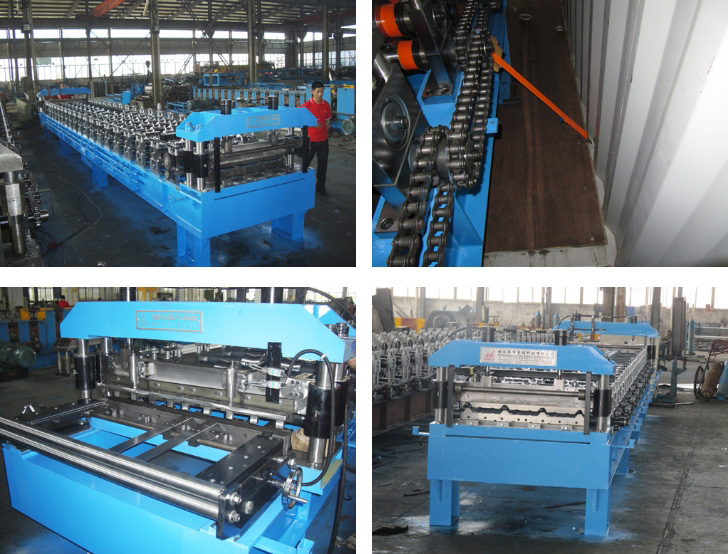

Descrition:

We adopt 20 roll forming stations with seperate stands structure and 11kw variable motor made in china .

The machine can roll the steel thickness from 0.3mm up to 0.8mm,full hard pre-painted steel coils,galvanized steel coils and the speed can reach max 100ft( 30m/min)

The rollers material is 45# steel,fine processment,hard chrome HRC48--52 .

We adopt hydraulic stop-to-cut and cutting tolerance is +/-0.5mm

We adopts PLC control,Mitsubishi,Panasonic made in Japana and Siemens made in Germany

We us Yaskawa inverter speed control,Omron encoder measures the length made in Japan

The safety covers on the machine is used to protect the operators

Emergency stop press button is installed at the point where the cutting blades works and coils feeding entrance

Specifications:

1	Material thickness	mm	0.3-0.8mm Full hard,G550Mpa
2	Forming speed	m/min	12-30
3	Roll station	/	20
4	Main power	kw	11
5	Coil width input		1053mm
6	Hydraulic power	kw	4
7	Control system	/	PLC panasonic/omron/simens/mitsubishi
8	Drive	/	Chain drive
9	Decoiler	5T	Manual type and hydraulic decoiler and coil car as options
10	Safety cover		Yellow color

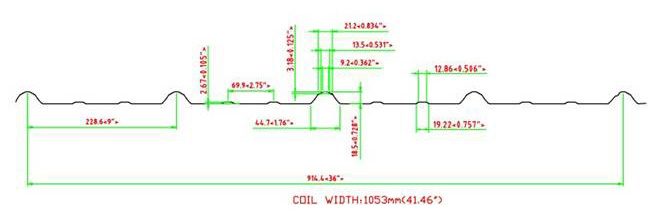

Profile Drawing

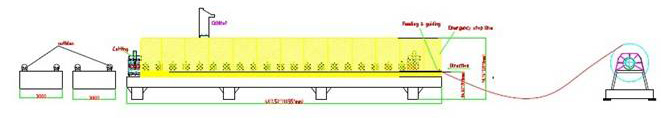

Flowchart
