Decoiler,leveller and servo-feeder
Descrition:

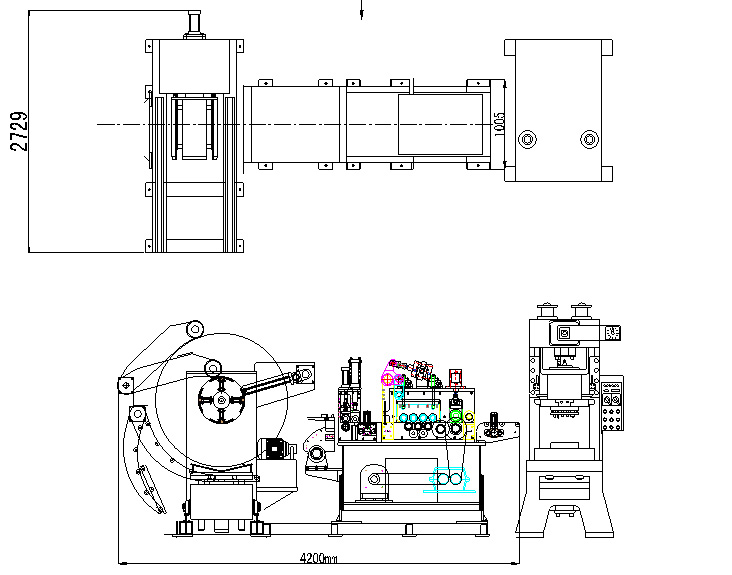

the layout of system
Specification:
|
Meterial |
cold roll steel |
|
Coil Weight |
5,000KG |
|
Strip Width |
MAX 1000MM |
|
Strip Thickness for capacity |
0.5-2.5mm |
|
Coil O. D |
1500 mm (max) |
|
Coil I.D |
508mm (max) |
|
Feeding Accuracy |
+ 0,15 mm |
|
Feed length input |
9999.99mm |
|
Feed Speed |
15 m/min |
|
Electrics |
380 Volts 50 Hz. |
|
Feeder power |
servo motor AC 7.5KW |

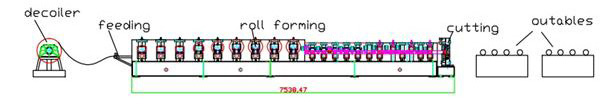

Flow Chart:
