Cable Tray Forming Machine

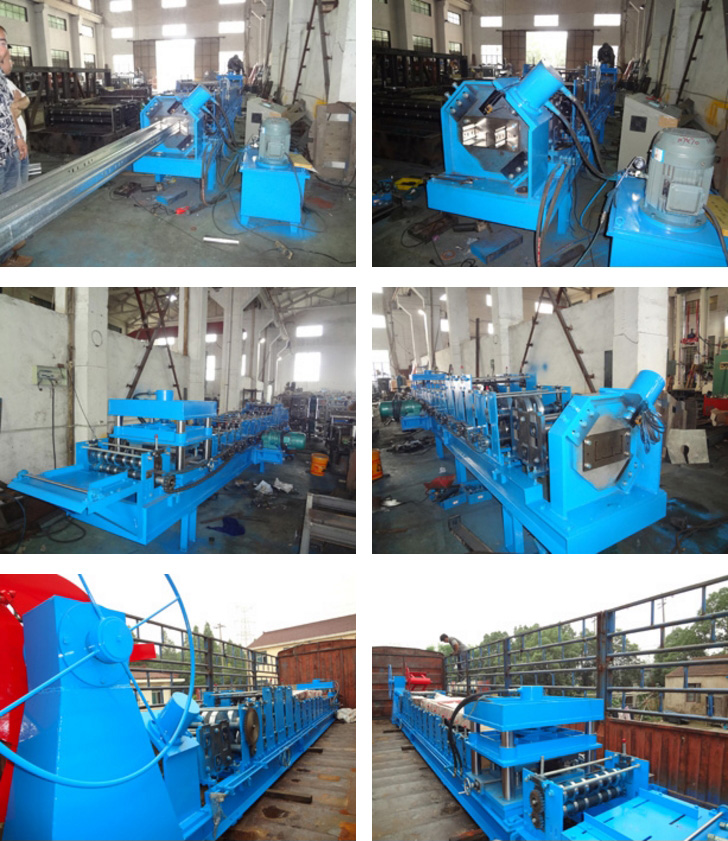

Profile show:

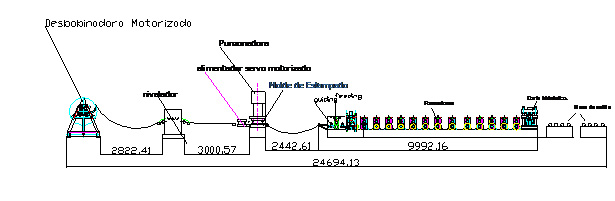

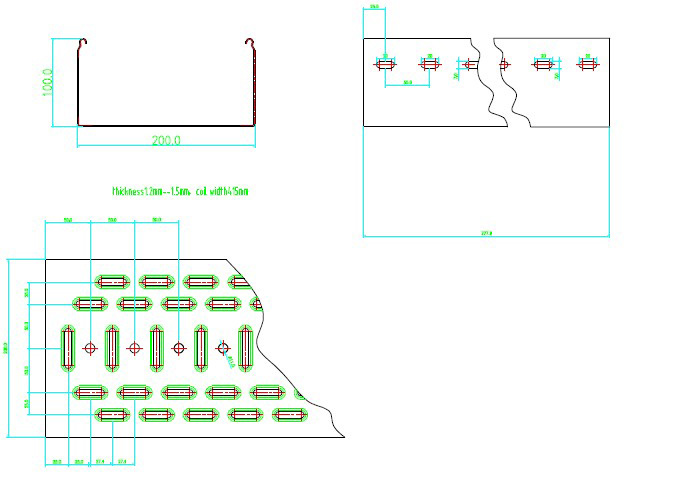

Drawing:
Main technical parameters:

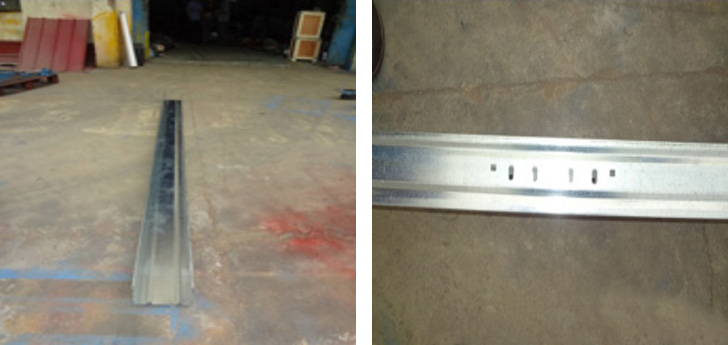

※Finished products:100x200 Cable tray with holes punching
※Raw material request:G300Mpa cold steel or galvanized steel
※Material thickness:1.0mm-1.5mm
※Whole line working speed: >3--5m/min
※Process flow:
Motorized de-coiler-Powered leveling –Servo feeder-Holes punching- Forming-Hydraulic cutting-Output table
Equipment consists:
|
NO. |
Name |
Quant |
Remark |
|
1 |
Motorized decoiler |
1 |
Max 5T |
|
2 |
Leveling machine |
1 |
5.5kw frequency change driving-motor,speed adjustable |
|
3 |
NC300 servo motor Feeder |
1 |
1.5kw Yaskawa Servo motor drive |
|
5 |
Punching press |
1 |
160 tons Capacity made in Yangli Group in china |
|
6 |
Punching mould |
1set |
Cr12 Mov |
|
7 |
Main forming |
1set |
Torri stands |
|
8 |
Hydraulic cutting |
1 set |
|
|
9 |
Cutting blade |
1set |
Material Cr12,HCR58-62 |
|
10 |
Run-out table |
2pcs |
Steel frame with Rollers |
|
11 |
Electric panel |
1set |
PLC control system,Panasonic/Omron/Siemens |
