C purlin forming machine

Specification:


NO.

Items

Unit

Main specification

1

Material thickness

mm

1.5-3.0

2

Forming speed

m/min

12-15

3

Roll station

/

14stations(depend on the profile)

4

Main power

kw

15

5

Hydraulic power

kw

7.5

6

Control system

/

PLCpanasonic/omron/simens/mitsubishi

7

Drive

/

Chain drive

8

Decoiler

5T

Manual
Options:motorized/single-head hydraulic decoiler

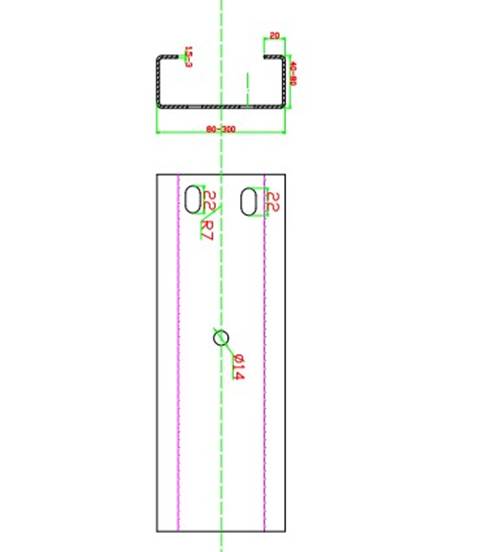

Profile Drawing：

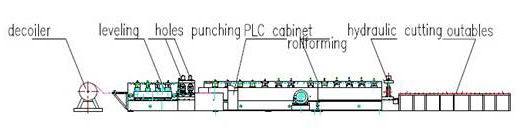

Flow Chart:
