3 in 1 Combination Profiles Paralled High-Speed Forming Machine

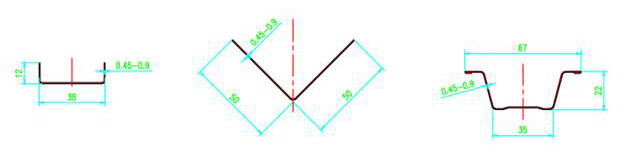

Profile Drawing

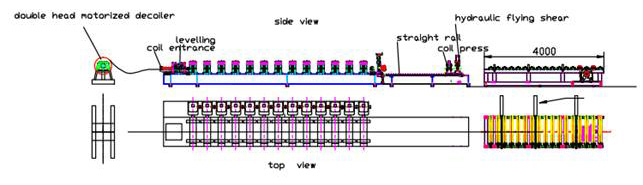

Flow chart:
Double head Motorized decoiler—feeding,leveling--forming—-flying shear-motorized transmission table
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.5-1.2mm |
|
2 |
Forming speed |
m/min |
35 |
|
3 |
Roll station |
/ |
14 |
|
4 |
Main power |
kw |
15 |
|
5 |
Hydraulic power |
kw |
5.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
3T |
Manual type and hydraulic decoiler and coil car as options |
