CZ purlin interchangeable forming machine

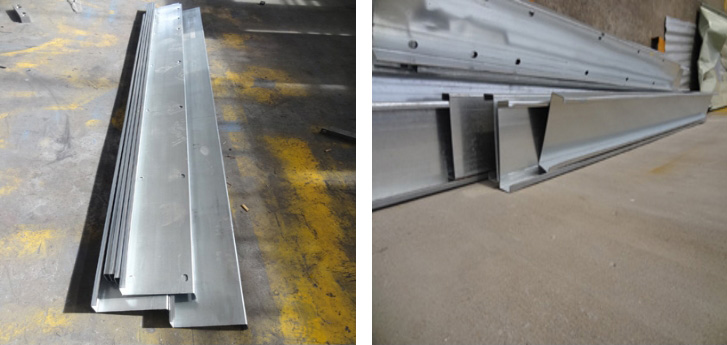

Profile show
Description:
C-Z interchangeable machine adopts a special structure. The rollers for C & Z are changed very quickly without dismantle anything.parts. One machine can produce all specifications of C & Z purlins. Crimples are optional to increase rigidity of purlin.
Specification:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-3.0 |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
20 |
|
4 |
Main power |
kw |
18.5 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual type and hydraulic decoiler and coil car as options |

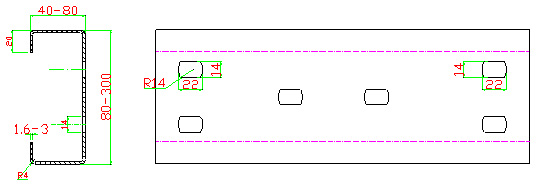

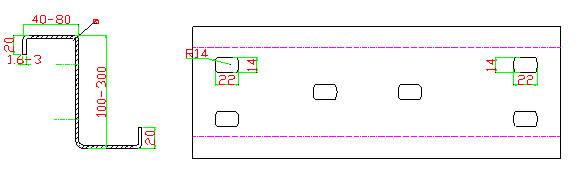

Profile Drawing:

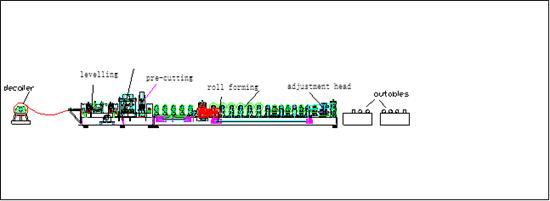

Flow Chart:
