RidgeTop Forming Machine
Equipment:
5T manual decoiler, top side film covering unit,roll forming machine, hydraulic station, PLC cabinet, hydraulic shear,outables(2x2m)

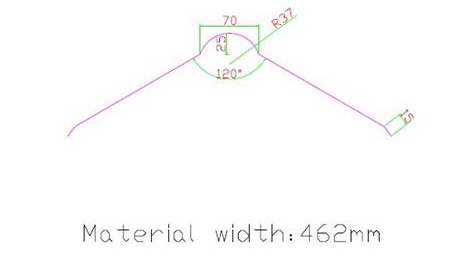

Drawing:
Specifications:
|
1 |
Material thickness |
mm |
0.3--0.8mm G350Mpa |
|
2 |
Forming speed |
m/min |
15-18m |
|
3 |
Roll station |
/ |
14 |
|
4 |
Main power |
kw |
5.5 |
|
5 |
Hydraulic power |
kw |
3 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
|
3T/manual decoiler ( coil car as option) |

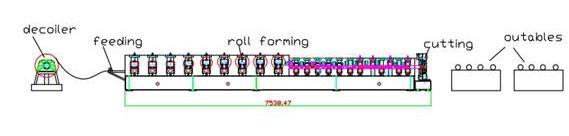

Flow Chart:
