Roof Battern rollformer

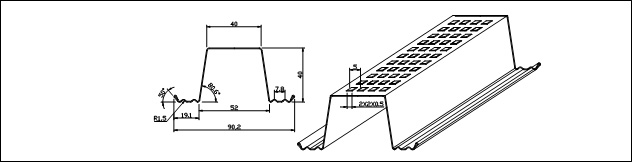

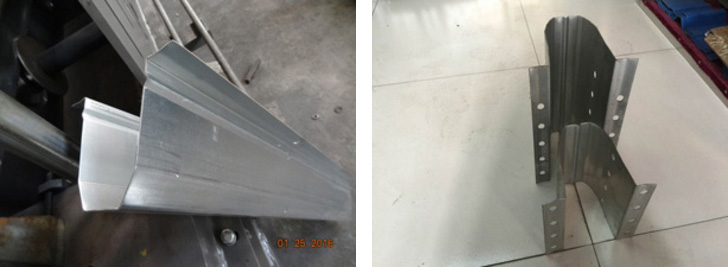

Profile show:
Work Flow:
manual decoiler--feeding----sheet forming--hydraulic cutting after forming--outable

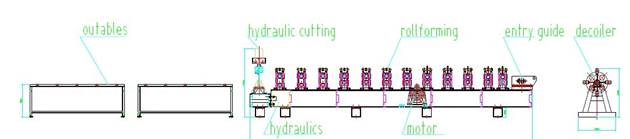

Drawing
Specification:
|
1 |
Material thickness |
mm |
0.5-0.8mm G350Mpa |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
14 |
|
4 |
Main power |
kw |
5.5 |
|
5 |
Hydraulic cutting power |
kw |
4 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
|
5T/manual decoiler ( coil car as option) |
