1-6mmx2200mm CTL

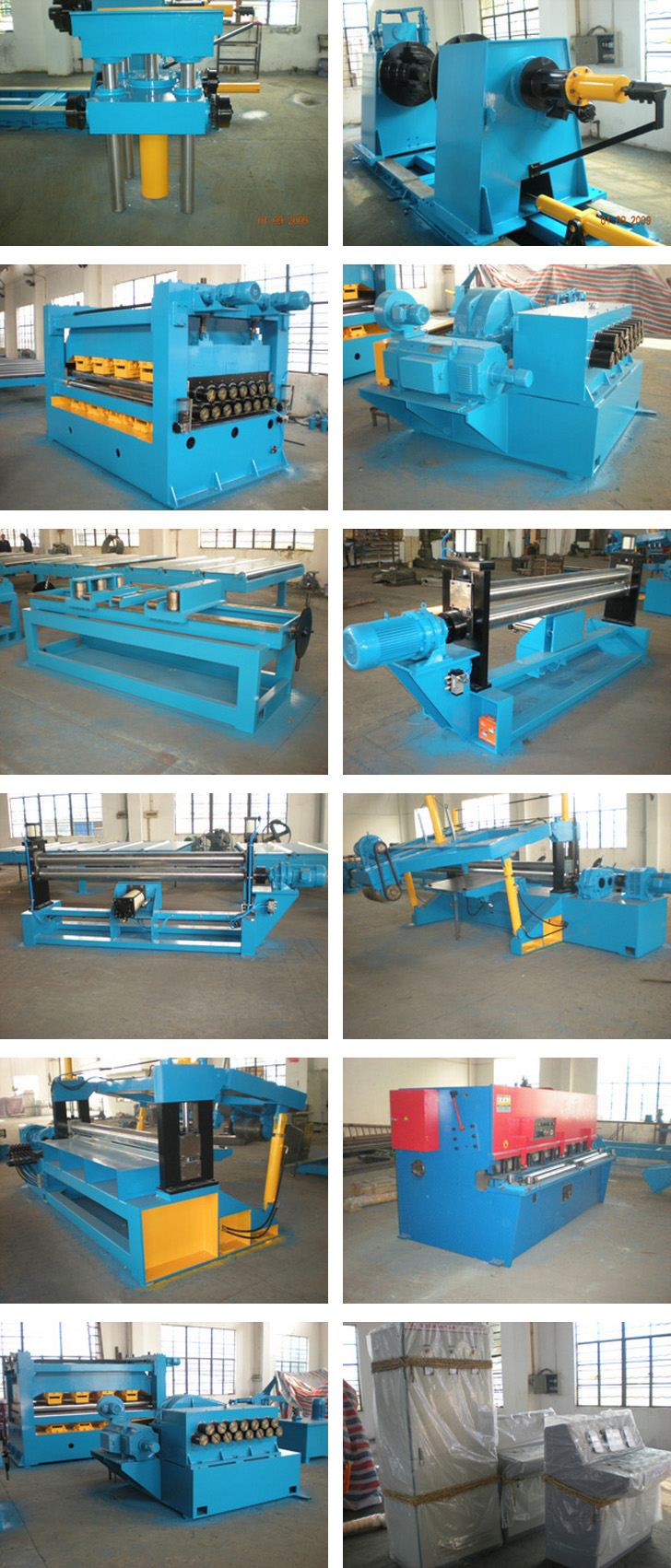

Components of 1mm-6mm x 2200mm leveling&cut-to-length machine

Hydraulic coil car(20T)	1
Hydraqulic coil car(20T)	1
V-shaped coil storage platform	1
guiding&pressing and shovel head unit,	1
2 pinch rolls and 15 leveling rolls	1
Sheet sides guiding organ	1
Length encoder table	1
Shearing machine	1
Sheet transmission table	1
End sheet pinch unit	1
Sheet pushing unit(pneumatic auto-stacker	1
Hydraulic control cabinet	1 set
Pneumatic control system	1 set
Electrical control cabinets	1 set

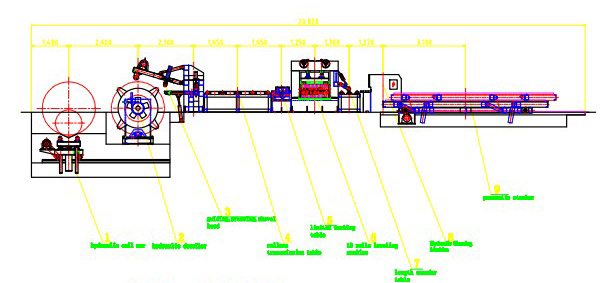

Flow chart:

Hydraqulic coil car--hydraulic single head decoiler--guiding&pressing and shovel head unit--sides guiding organ--2 pinch rolls--- sides guiding unit-----15 rolls leveling--length encoder system--- hydraulic shearing machine---sheet transmission table------sheet pushing units(pneumatic stacker)-----hydraulic control system and electrical control cabinets

V-shaped platform and coil car
Form of coil car: four-wheeled walk
Structure of coil car: steel structure and it is V-shape on top.
Power of continuous walk:2.2kw cycloidal gear decelerator
Power of lifting and lowering:hydraulic cyliner driven ф160mmx700mm
max journey of lifting and lowering:700mm
Max loading capacity:20000KG
walking speed:7.48m/min
electrical control system
1Power supply:380V,50Hz or design according to the customer local standard
PLC control is Mitsubishi brand,Japan and human-interrative touch screen from Taiwan to realize the whole line control
