0.2--3 High Speed Cut-to-length Machine
Basic specification of the whole line:
Steel coil grade:бs≤360N/mm2,pre-painted steel or galvanized steel
Coil thickness:0.3--2mm
Coil width:500mm---1250mm
coil outer diameter: ф1000--- ф1800mm
Coil inner diameter:φ460mm--φ520mm
Cutting length:1000mm---6000mm
Cutting length tolerance:+/-0.5mm according to the length 2000mm
Cutting diagonal tolerance:+/-1mm according to the length 2000mm
Leveling accuracy:≤±1.0mm/m2
Line speed:0--110m/min
Cutting speed:25 --30pcs/min according to 2m long sheet
Whole Line weight:50t
Components of 0.3mm---2mm x 1250mm leveling&cut-to-length machine
|
Hydraulic coil car(25T) |
1 |
|
Hydraulic double tampered decoiler(25T) |
1 |
|
V-shaped coil storage platform |
1 |
|
Head guiding& shoveler head unit, |
1 |
|
2 pinch rolls and 19 pre-leveling rolls |
1 |
|
Pit(loop) |
1 |
|
Center alligning unit |
1 |
|
2+2 rolls( length measuring) |
1 set |
|
Hydraulic Shearing machine |
1 |
|
Belt transmission table |
1 |
|
Sheet piling-up platform |
1 |
|
Hydraulic lifting& lowering Stacking table |
1 |
|
Sheet unloading coil car |
1 pc |
|
Hydraulic control station |
1 set |
|
Pneumatic control system |
1 set |

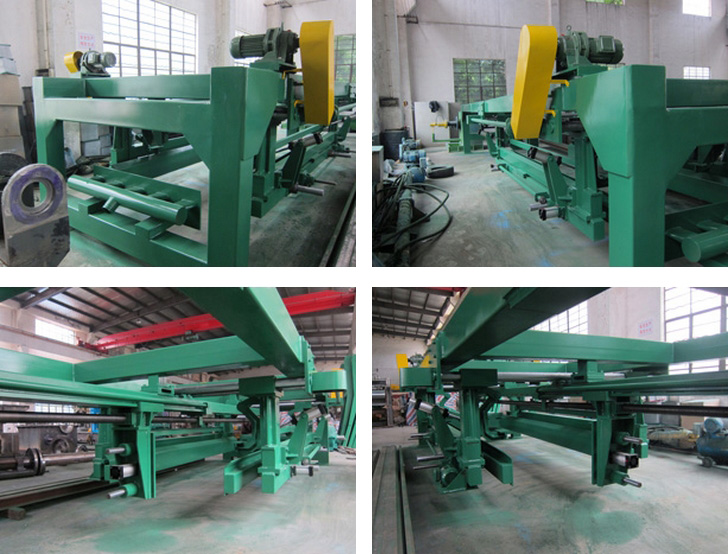

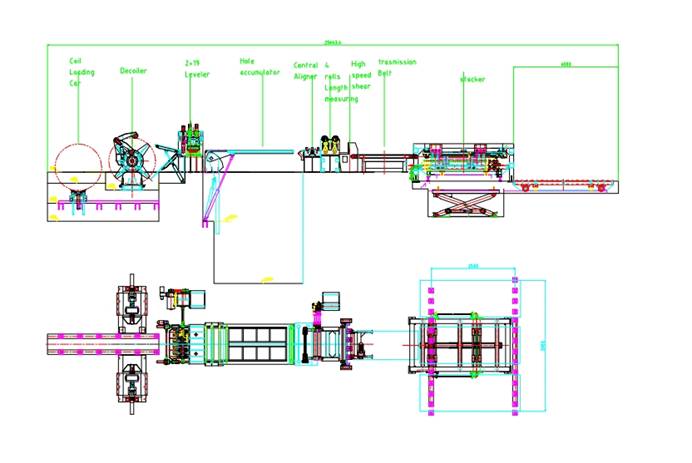

Flow chart:
Hydraqulic coil car--hydraulic double tampered decoiler--guiding&pressing and shoveller head unit--center alligning --2 pinch rolls&19rolls leveling machine--pit--guiding--4 rolls leveling for measuring the length---sheet transmission table----high-speed shearing machine--sheet transmissioning belt---auto stacker-----hydraulic control system and electrical control cabinets
