Sigma Forming Machine

C Purlin Profiles Drawing:

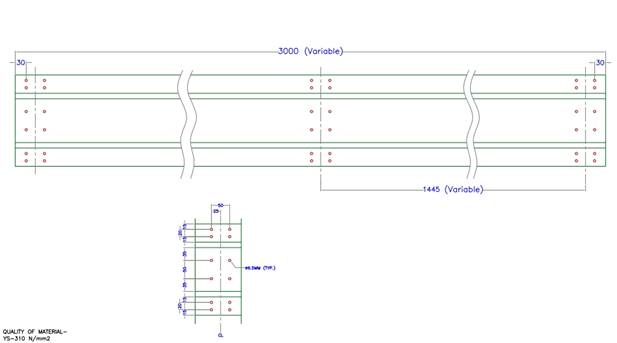

The Holes Punching Drawing(punched on the width)

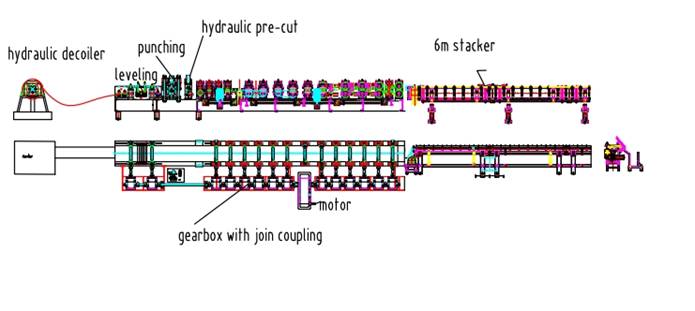

Flow Chart:



Specifications:


NO.

Items

Unit

Main specification

1

Material thickness

mm

2-4.0

2

Forming speed

m/min

12

3

Roll station

/

20

4

Main power

kw

37

5

Hydraulic power

kw

11

6

Control system

/

PLC panasonic/omron/simens/mitsubishi

7

Drive

/

gearbox drive

8

Decoiler

5T

Manual type and hydraulic decoiler and coil car as options
