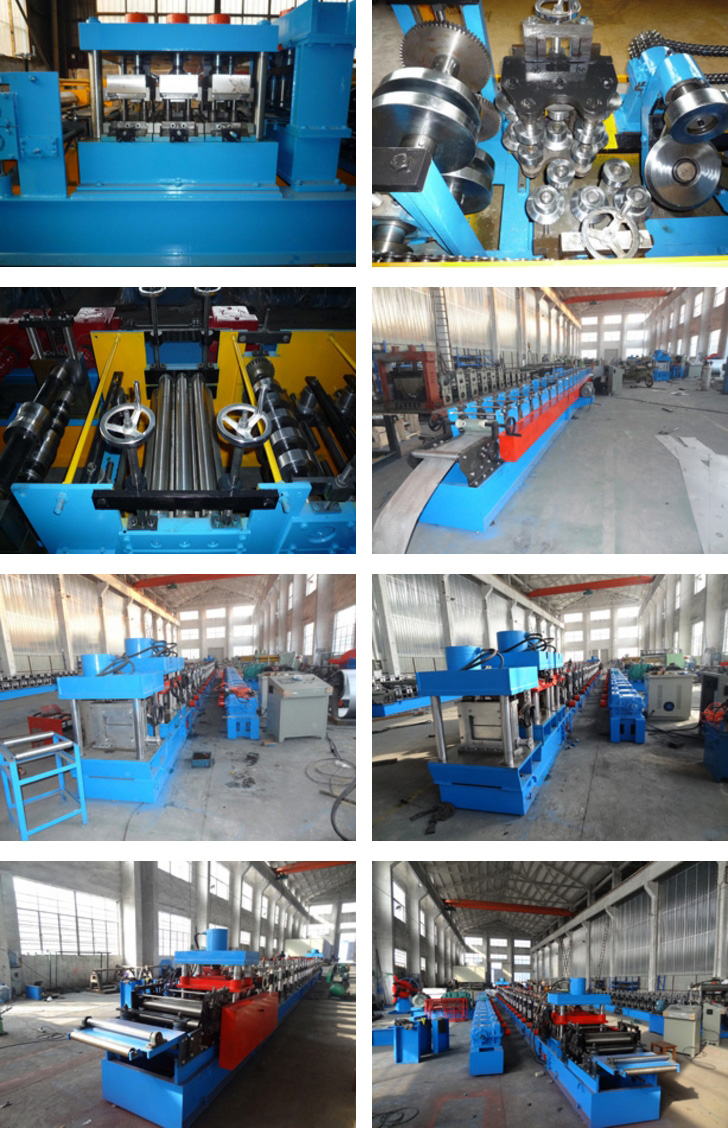

Heavy-Duty CUZ interchangeable Forming Line

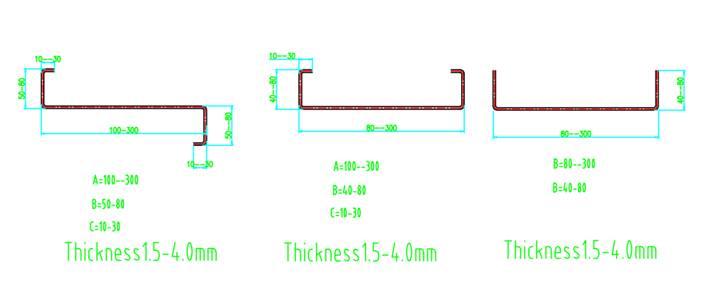

The profiles Drawing:

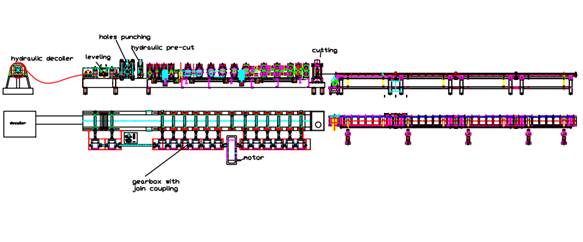

The production flow of equipment
5T hydrarlic Decoiler--2 rolls feeding--5 leveling--hydraulic pre-cut---- Punching station 1---Punching station 2--Roll Forming--Hydraulic cutting( without scraps)----12M stacker
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-3.5 |
|
2 |
Forming speed |
m/min |
12-20 |
|
3 |
Roll station |
/ |
14stations(depend on the profile) |
|
4 |
Main power |
kw |
37 |
|
5 |
Hydraulic power |
kw |
11 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
gearbox drive |
|
8 |
Decoiler |
5T |
hydraulic decoiler |
