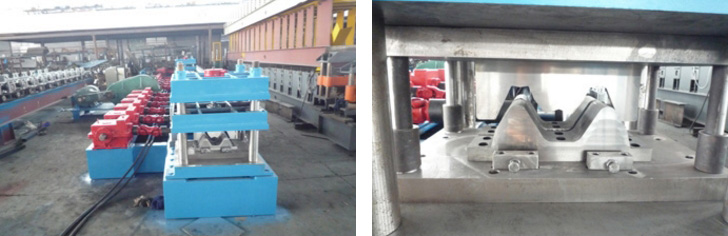

M194 Two Wave Guardrail forming machine

Specification:


1

Material thickness

mm

2-3.5mm Cold rolled or galvanized steel

2

Forming speed

m/min

18-25

3

Roll station

/

13

4

Main power

kw

45

5

Hydraulic power

kw

5.5

6

Control system

/

PLC panasonic/omron/simens/mitsubishi

7

Drive

/

Chain drive

8

Decoiler

5T/10T

5T/10T/15T hydraulic decoiler ( coil car as option)

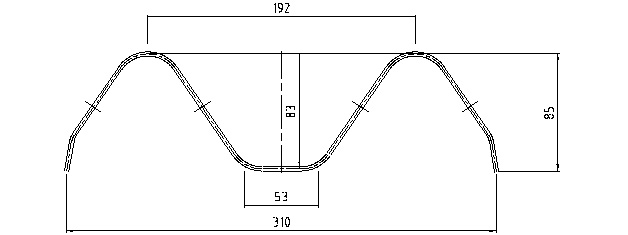

Profile Drawing:

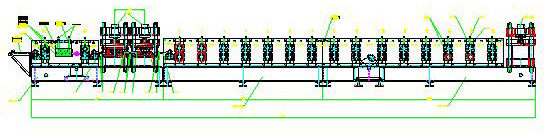

Flow Chart:
