Guardrail Forming Line

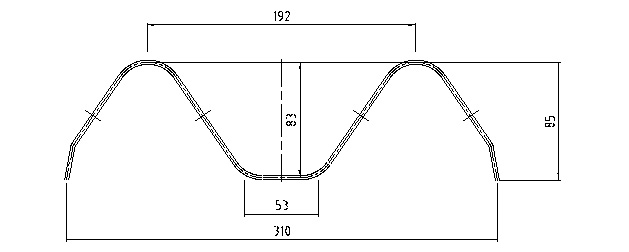

The profile:
The thickness of sheet: 2mm---3.5mm cold rolled or galvanized steel
the holes size drawing:

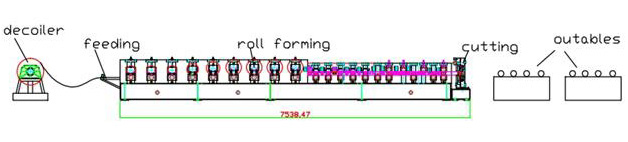

The equipment flowchart:
The production flow of equipment
Decoiling—Feeding—leveling---- Punching—roll forming----hydraulic cut to length—6m stacker
Specifications:
|
1 |
Material thickness |
mm |
2-3.5mm Cold rolled or galvanized steel |
|
2 |
Forming speed |
m/min |
18-25 |
|
3 |
Roll station |
/ |
13 |
|
4 |
Coil width |
mm |
476 |
|
5 |
Coil weight |
kw |
10000kg |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/10T |
5T/10T/15T hydraulic decoiler ( coil car as option) |
