Step Beam Forming Machine

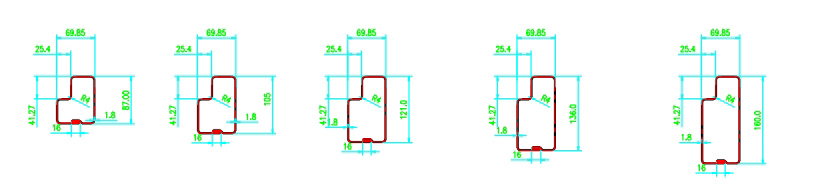

Profile Drawing

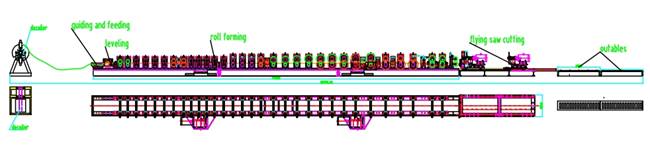

Technological Process:
Decoiling→ Coil sheet guiding&feeding,levelling → Roll forming → flying saw cutting→ outable
Specifications
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-1.8 |
|
2 |
Forming speed |
m/min |
15 |
|
3 |
Roll station |
/ |
31 stations |
|
4 |
Main power |
kw |
2-22 |
|
5 |
Saw cutting |
kw |
18.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual |
