NO.

Name

Quant.

Remark

1

Motorized decoiler

1

3T

2

Main forming
Machine unit

1

1) 22 forming stations
2) Cast iron stands

1. Gearbox drive
2. 22KW motor made in China

3

Turkish head

1 set

It can make the product straight

4

Hydraulic cutting

1

Material GCr15,HCR58-62
Hydraulic power 7.5kw

5

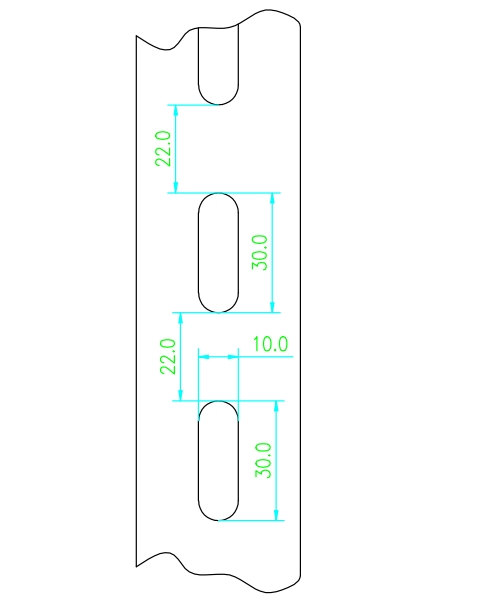

Hydraulic pre-punching

1 set

1. stop-to-punch
2. 1 set of holes punching mould

6

Cutting blade

1set

Cr12

7

6M Run-out table

1

1. Steel frame with Rollers
2. Pneumatic pushing and drop the product

8

Electric control cabinet

1

1)PLC control,Siemens
2)Yaskawa inverter ,made in Japan
3)Omron encoder ,made in Japan

9

Cooling&lubrication system

1
