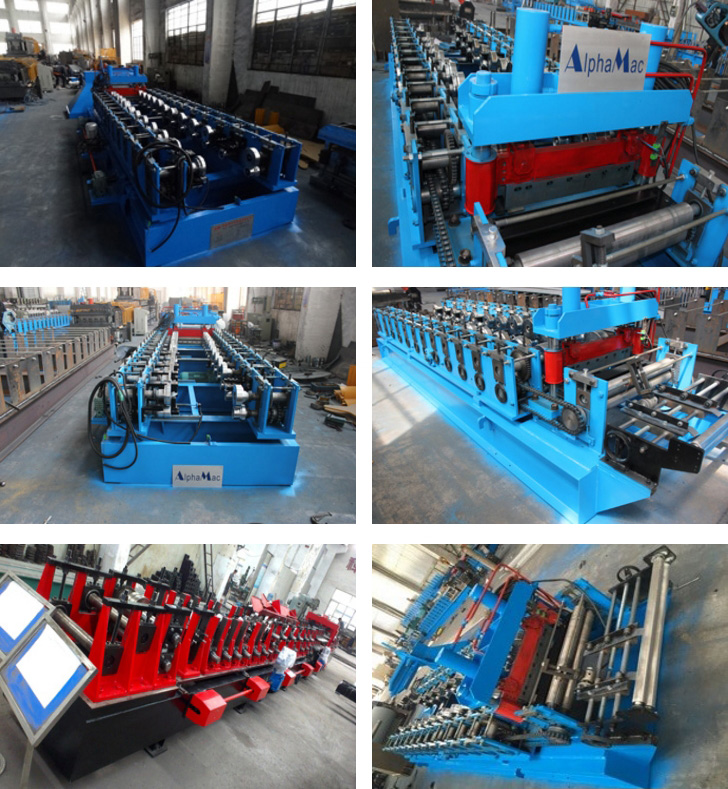

Single-side Ajustment C Purlin Forming Machine

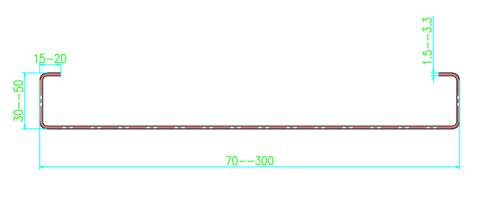

profile drawing

NO.	Items	Unit	Main specification
1	Material thickness	mm	1.5-3.2
2	Forming speed	m/min	12-15
3	Roll station	/	2
4	Main power	kw	22
5	Hydraulic power	kw	5.5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	Manual type and hydraulic decoiler and coil car as options

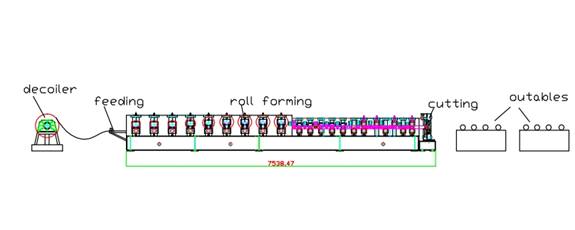

Flow Chart
