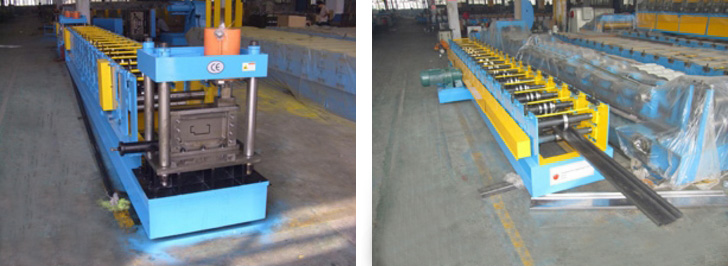

Door Frame Roll Forming Machine

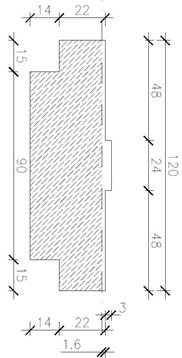

slot size for lock set:

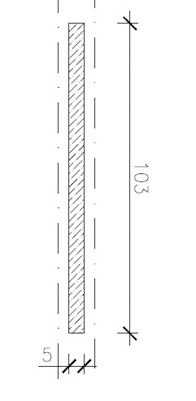

Slot size for hinge set:
2.Main technical parameters:
|
1 |
Material thickness |
mm |
0.8-1.2 |
|
2 |
Forming speed |
m/min |
15 |
|
3 |
Roll station |
/ |
17 |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic power |
kw |
5.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
5T hydraulic decoiler |

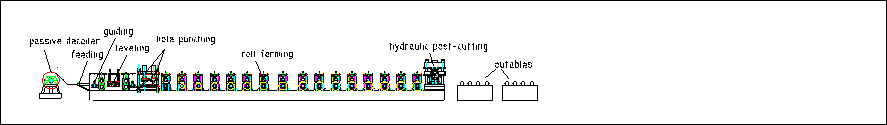

3.Process flow:
5T decoiler--feeding,guiding and levelling--hing slots punching-lock punching-- roll Forming-Hydraulic cutting-Output table(to be prepared by the user）
