914 Metal Deck Forming Machine

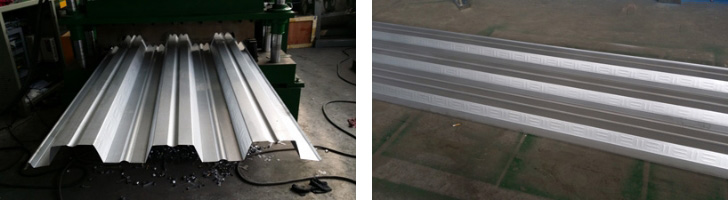

Profile show:

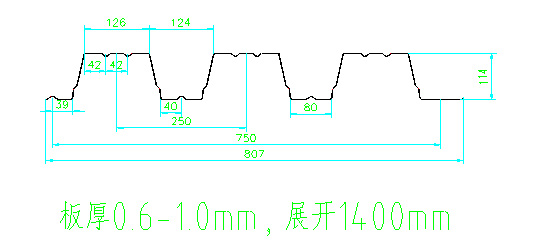

Profile Drawing:
Technical parameter:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.6-1.2 |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
44 stations |
|
4 |
Main power |
kw |
44 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
10T |
hydraulic decoiler |

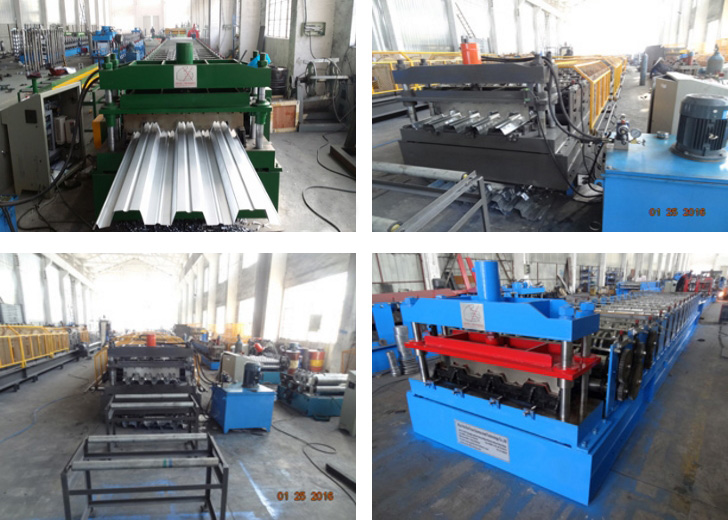

Components of the whole line:
10T hydraulic Decoiler, Roll forming machine ,Hydraulic shearing system,hydraulic station,PLC control cabinet ,2 outables

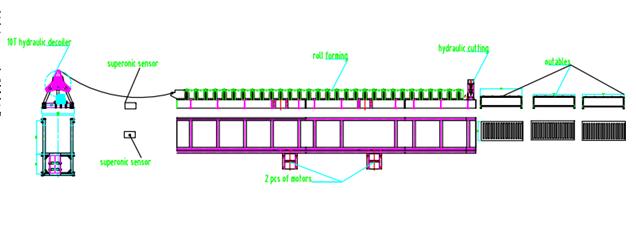

Flow chart:
10T hydraulic decoiler--feeding ---roll Forming---hydraulic cutting--outables
