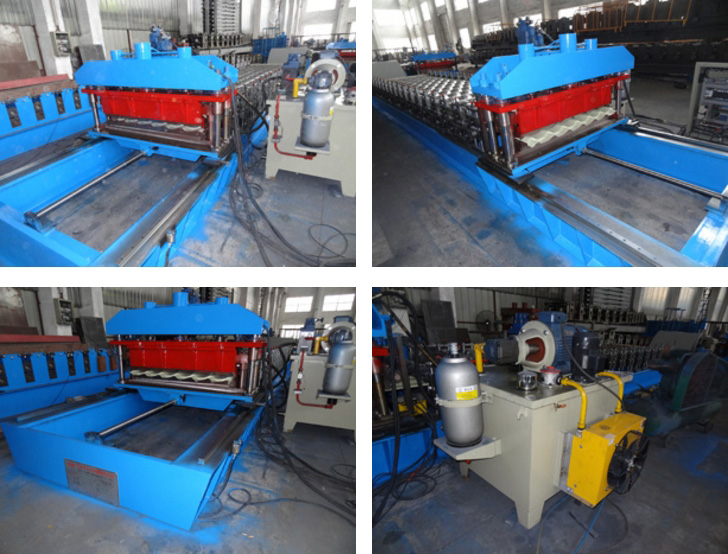

Flying shear Roofing Tile Forming machine

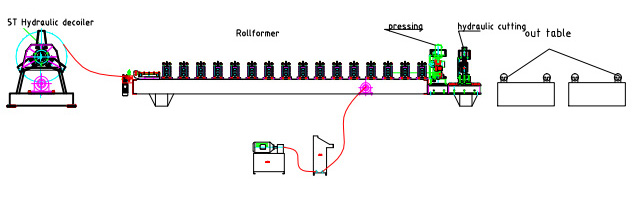

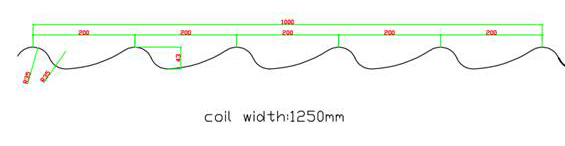

Drawing:
Main Technical specifications:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.4-0.6 |
|
2 |
Forming speed |
m/min |
20 |
|
3 |
Line speed |
m/min |
5--6 |
|
4 |
Roll station |
/ |
18 stations(depend on the profile) |
|
5 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLC, panasonic/Siemens |
|
7 |
Drive |
/ |
by chain |
|
8 |
Way of decoiler |
|
5T manual decoiler |
Flowchart:
5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--- Output tables
