Perforated Rolling Shutter Door Machine

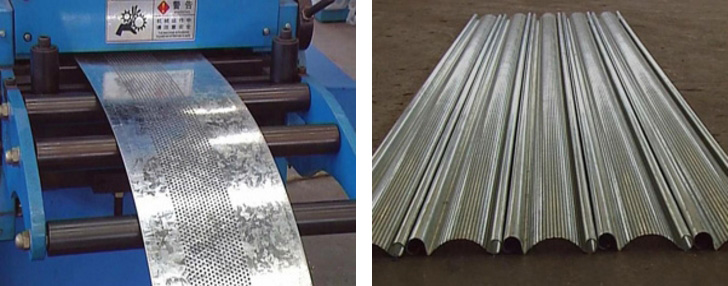

Profile show

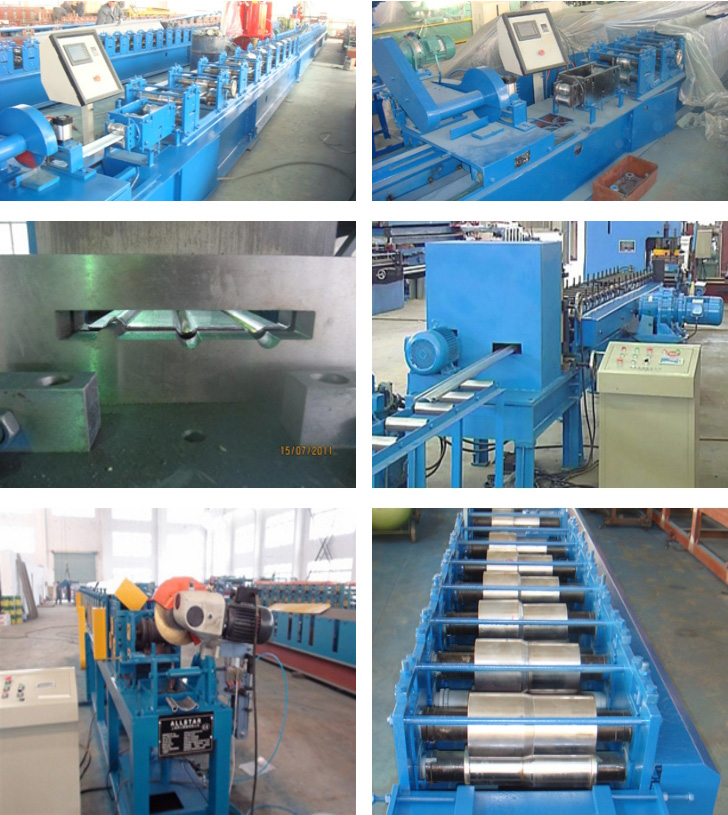

Equipment:
3T Decoiler, Roll forming machine, PLC cabinet, flying saw cutting, 63T punching press,holes punching mould,( 1 set),mechnical feeder,Output table(2),

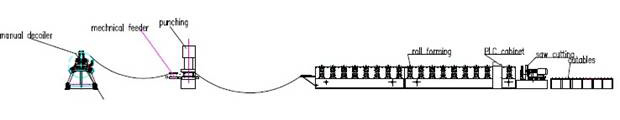

Flow chart:
Passive uncoiler --- Mechanical Feeder --- Holes Punching --- Forming --- Flying Saw Cutting --- Outables

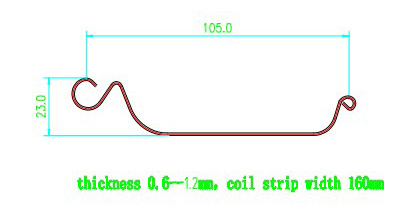

Drawing:
Descrition:
|
1 |
Material thickness |
mm |
0.6-1.2mm Full hard,350Mpa |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
14 |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Cutting power |
kw |
5.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Holes punching |
|
80T punching press made in China |
|
8 |
feeder |
|
Mechnical feeder |
|
9 |
Drive |
/ |
Chain drive |
|
10 |
Decoiler |
3 |
3T manual decoiler |
