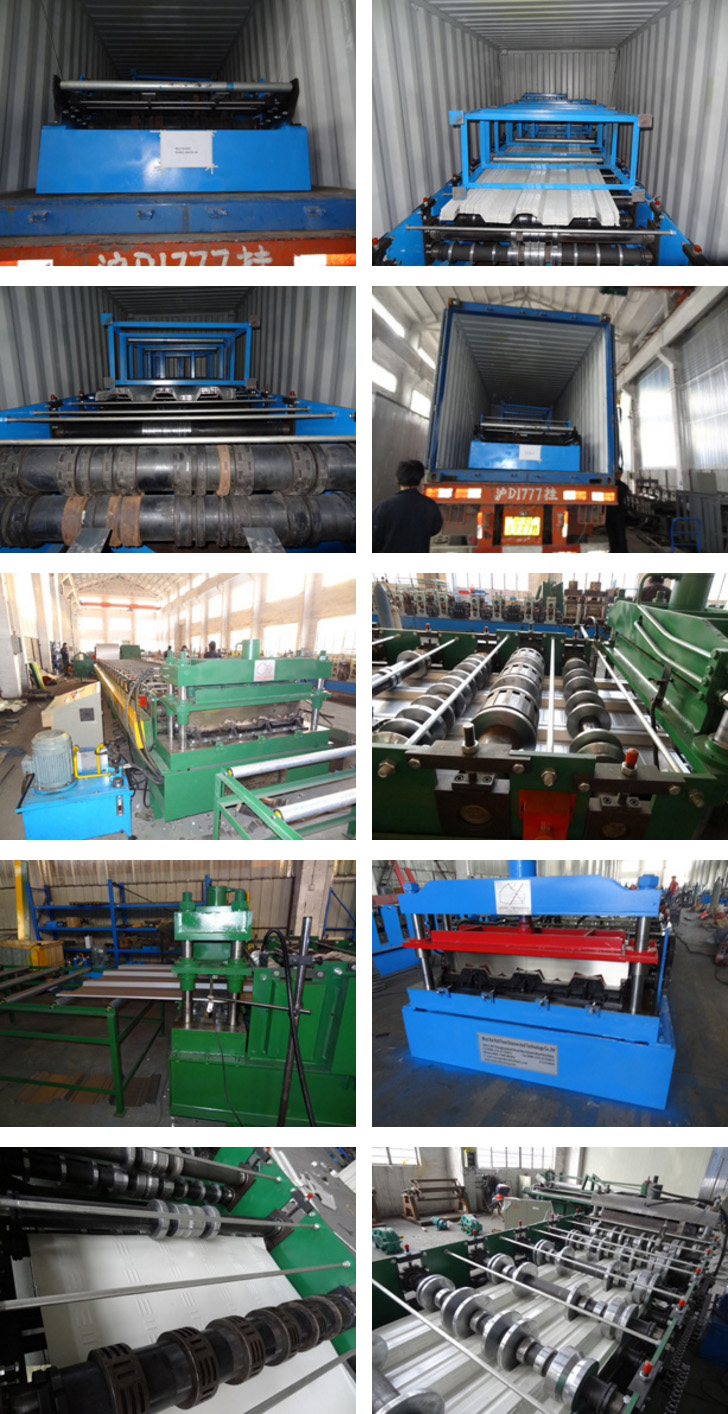

Metal Deck Forming Machine

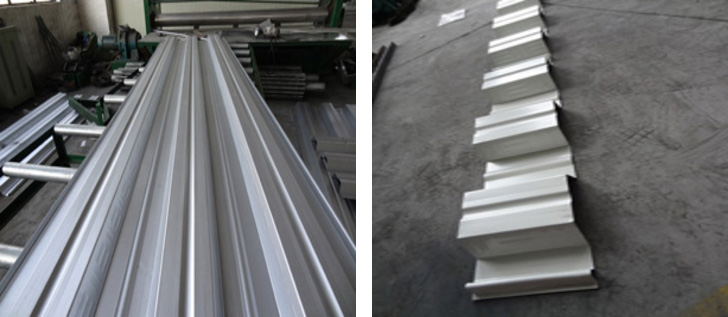

Profile show:

Specifications:

NO.
Items

Unit

Main specification

1

Material thickness

mm

0.6-1.2

2

Forming speed

m/min

18-20

3

Roll station

/

26 stations

4

Main power

kw

2-11

5

Hydraulic power

kw

5,5

6

Control system

/

PLCpanasonic/omron/simens/mitsubishi

7

Drive

/

Chain drive

8

Decoiler

5T

Manual
Options:motorized/single-head hydraulic decoiler

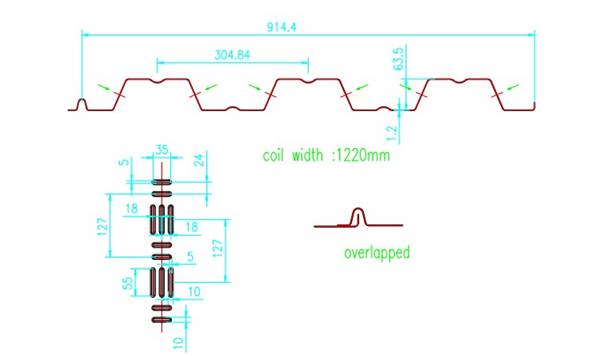

Profile Drawing:

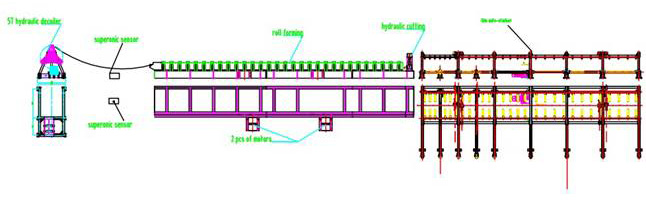

Flowchart:

5T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→12M auto-stacker

Pre：High-Rib Deck Machine
Next：stand seam Forming Machine

NO.	Items	Unit	Main specification
1	Material thickness	mm	0.6-1.2
2	Forming speed	m/min	18-20
3	Roll station	/	26 stations
4	Main power	kw	2-11
5	Hydraulic power	kw	5,5
6	Control system	/	PLCpanasonic/omron/simens/mitsubishi
7	Drive	/	Chain drive
8	Decoiler	5T	Manual Options:motorized/single-head hydraulic decoiler
