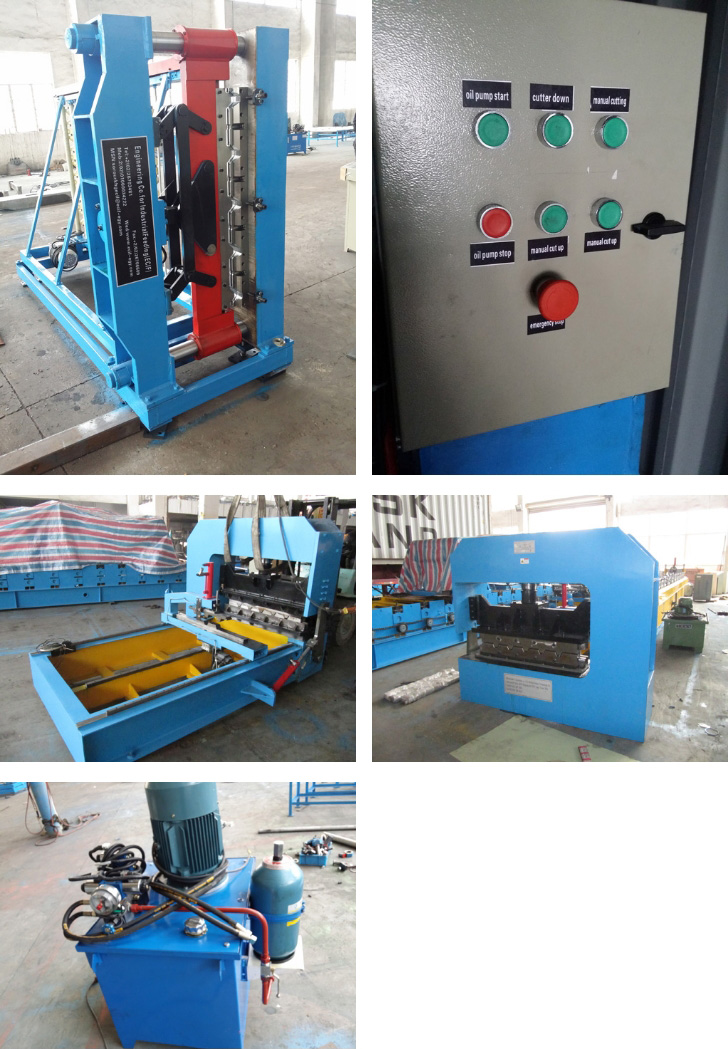

Cranking machine
Descrition:

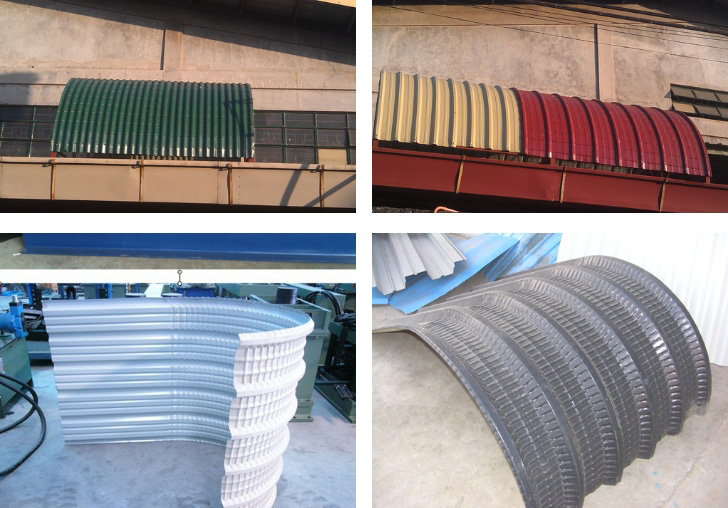

1.The cranking machine is used widely in the field of roll forming industries by which it can process the forming roof tiles or wall panels to crank different arch .

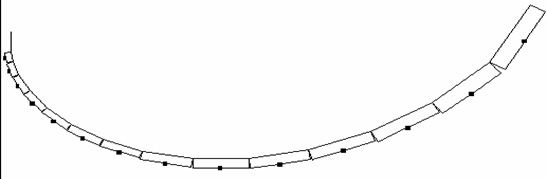

2:the operator can set the archs and step distance on the touch screen then the machine can work automatically .
3:It is easy to operate and convient to use it
4:We adopt Panasonic PLC ,Yaskawa inverter control and Omron encoder made in Japan
Specifications:
Main technical specifications
|
1 |
Material thickness |
mm |
0.4-0.8mm |
|
2 |
Forming speed |
m/min |
0-10 |
|
3 |
Motor power |
kw |
2.2 |
|
4 |
Hydraulic Power |
kw |
11 |
|
5 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
6 |
Power supply |
|
380v,50Hz,3ph |
|
7 |
Drive |
/ |
Chain drive |

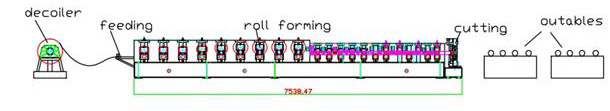

Flow Chart:
