0.4-4x1600mm High-speed Coil Slitting Machine
Description:
The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precision equipment making and metal strips making industries.
According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine.
According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.
1.Basic specification of the steel coil:
1 Steel coil material:HRC,CRC ( like cold rolled,hot rolled and galvanized steel or pre-painted steel)
2 Coil thickness:0.4mm--4mm
3 coil diameter:max 2100mm
4 Coil width500mm---1600mm
5 Coil inner diameter:508mm,610mm.760mm
6. Coil weight:20T/25T/30T
Technical specifications of the complete slitting machine:
1 The Material of available coils: apply for carbon steel ,cold rolled or hot rolled steel ,galvanized steel coil
2Thickness of the coils: 0.4—4mm;
3Width of the slitting coils:max 1600mm
4.Precision of slitting width tolerance: ±0.03mm
5.Slitting speed: 0—80m/min(adjustable)
6.Loading capacity of uncoiler machine:20T/25T/30T
7.Coil Inner.Diameter: 460mm-610mm-760mm
8.Coil Outer.Diameter: max 2100mm
9.Slitting motor power:90kw DC motor
10.Recoiler motor power:110 kw DC motor
11.Slitting blades:D220mmxd310mmxT15
12.material of the slitting blades:Cr12Mov(SKD-11),Hardness of blade: HRC58°—60°
13.Min slitting width : ≥30mm
14.Slitting blade quantity: 22 pcs
15.Recoiler I.D: 508mm and 610mm
16.Power supply: 380V 50Hz,3Ph or 440V,60Hz,3ph
17.Total dimension:25mx6mx2m
18.Total consumption:250kw

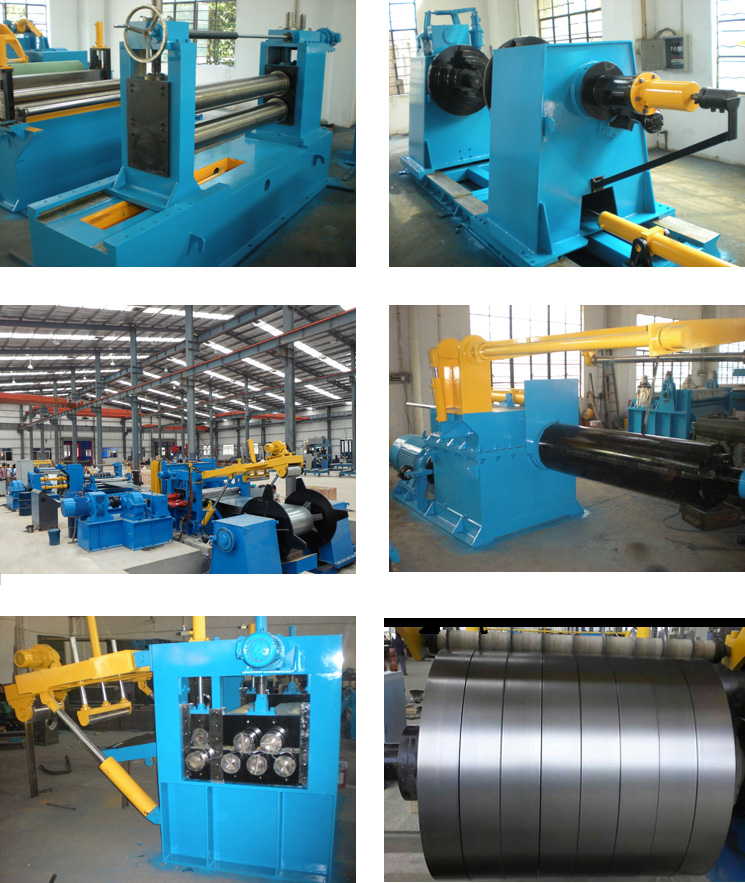

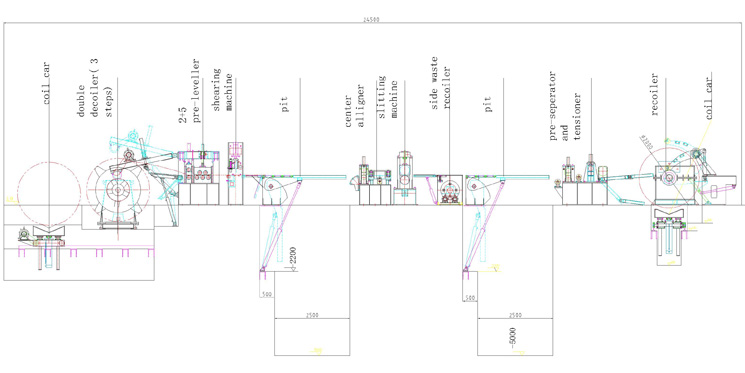

Flow chart :
Hydraulic coil car---double mandrel decoiler—head-guiding&head shovel -- 2 rolls feeding+5 rolls leveling --sheet head shearing machine---Pit(1)--deviation rectifying(sheet guiding)--slitting—side scrap recoiling—pit(2)---pre-seperator , tensioning machine---coil recoiling ---unloading coil car—--hydraulic control ---electrical control
