Box Panel Forming Machine
Profile show:

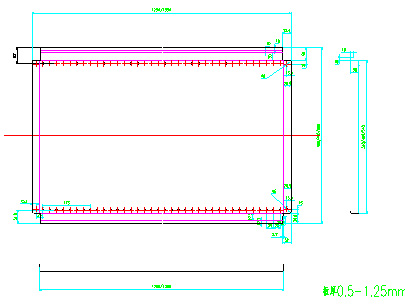

Profile Drawing 1:

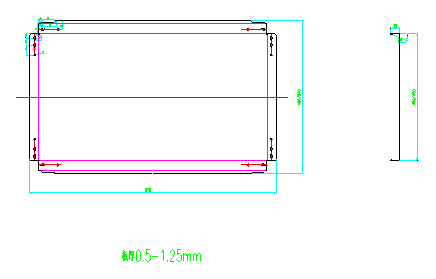

Profile drawing 2:
Technology parameter:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.15-1.25 |
|
2 |
Structure |
/ |
Wall panel structure |
|
3 |
Roll station |
/ |
15 stations |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual |
Equipment:
5 tons manual decoiler, 1 set
Side slitting unit ,1set
Side waste recoiler ,1 set
roll forming machine, 1 set(including the corner cut and holes punching moulds)
Hydraulic cutting and folding combination
PLC cabinet, 1 set
hydraulic station, 1 set
output table(2m/each X2pcs )

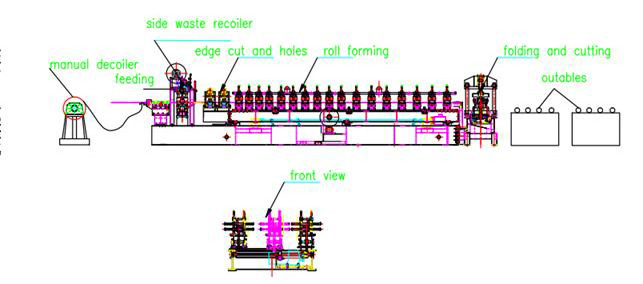

Flow chart:
manual decoiler--feeding--2pinch rolls--slitting---corner cut& holes punching ---roll forming----hydraulic cutting&folding combination-outables
