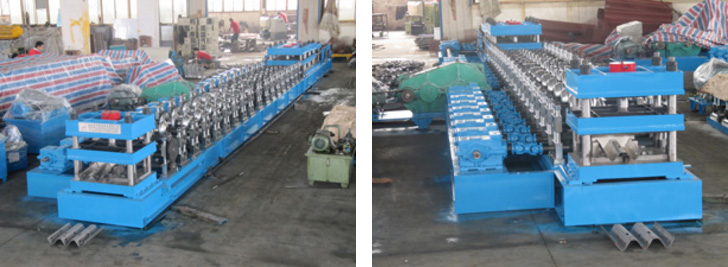

Three Wave Guardrail Forming Machine

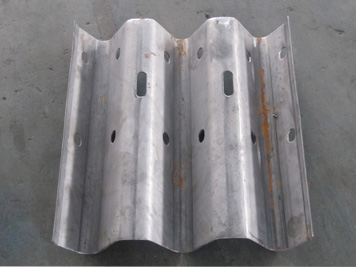

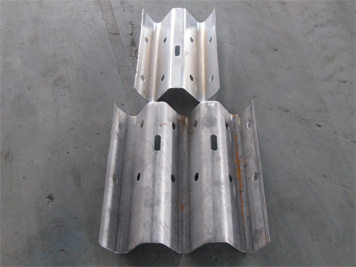

Profile show:
Specifications:
|
1 |
Material thickness |
mm |
2-3.5mm |
|
2 |
Forming speed |
m/min |
5-12 |
|
3 |
Roll station |
/ |
13 |
|
4 |
Main power |
kw |
45 |
|
5 |
Hydraulic power |
kw |
4 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/10T |
5T/10T/15T hydraulic decoiler ( coil car as option) |
Flowchart:
Decoiling—Feeding—leveling---- Punching—roll forming----hydraulic cut to length—product packing manual

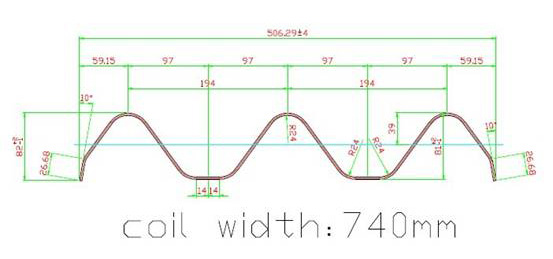

The profile:
