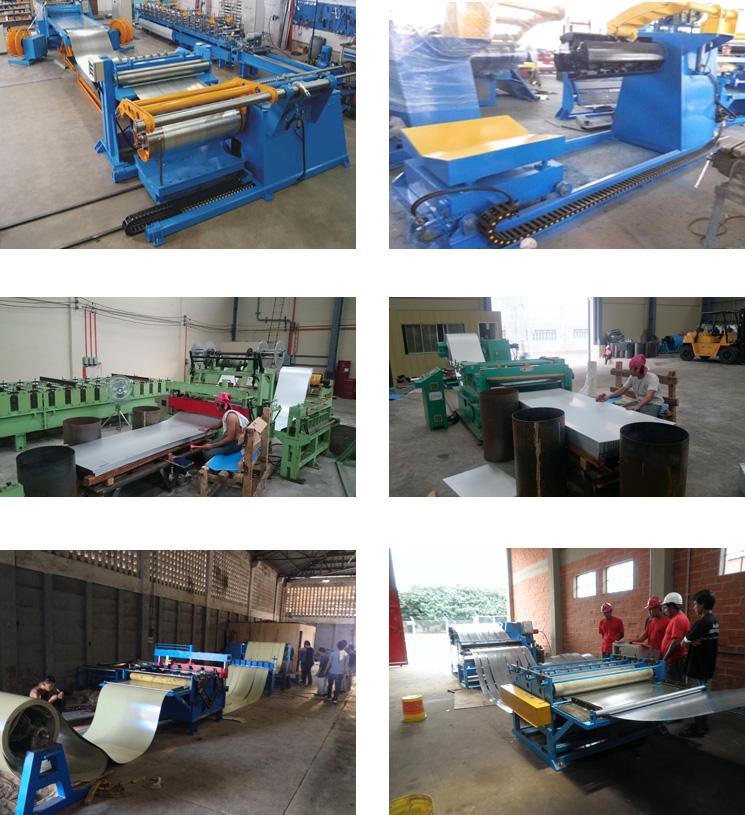

(0.3～1.2mm)×1250mm Automatic High-Precision Slitting/Cut-to-length Combination Machine

1. Basic technical parameters of the slitter/CTL machine

a)Material of coils: pre-painted coils or galanized steel etc

b) coil thickness range: 0.3～

1.2mm

c) coil width: 250～

1250mm

d) Inner diameter of coils: Φ450mm--Φ520mm

e) Outer diameter of coils: maxΦ1000mm.

f) Max. coil weight: 5,000Kgs

2. Working process for slitter line

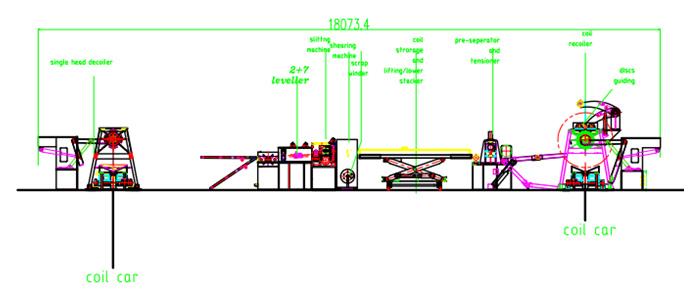

Coil car loading—single head uncoiling---Strip-aligning—2+7 levelling and film covering unit- Disc slitting-scrap recoiler --encoder-motorized cutting machine—lifting/lower auto-stacker —Pre-separator--- tensioner-—coil Recoiling——Coils discharging——Hydraulic control——Electric control
